Kits

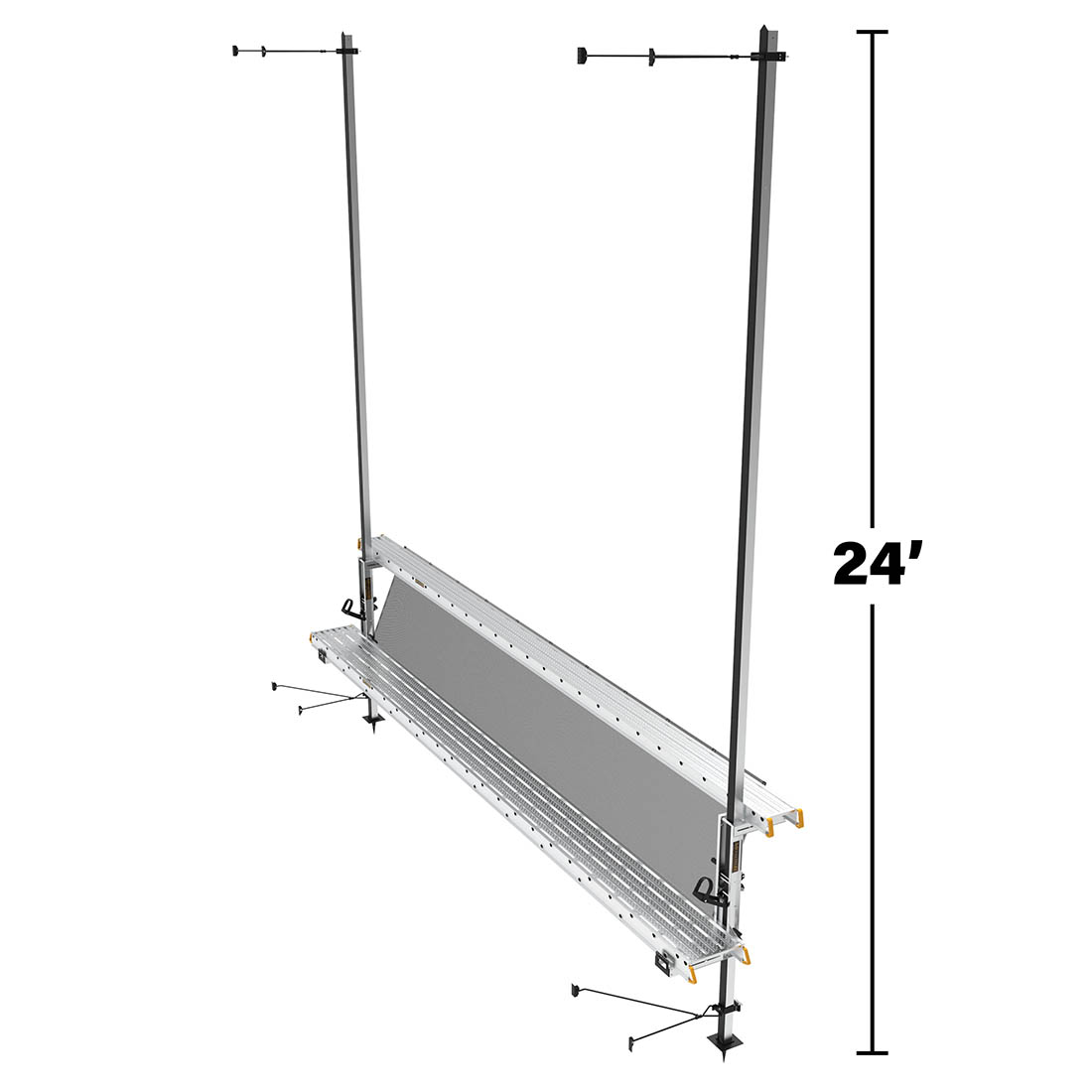

24′ x 24′ Ultra Jack System with anchor, net & scaffold stagings

Model: PJ-SY2424ANK
Product description
The 24ft x 24ft Ultra Jack Kit offers an efficient and safe solution for elevated construction needs, allowing continuous work at heights with a quick setup. This kit includes all the components needed to set up a 24ft long x 24ft high installation.

Kit components: two 24ft pro poles, two pole anchor bases, two aluminum pump jacks, two workbenches, four steel braces, one 20in wide x 24ft long staging platform, one 12in x 24ft long staging and a debris net.

The Metaltech stagings are made in Canada of strong aluminum. Featuring an anti-slip finish for safe usage, workers can work comfortably at heights with no interruptions.

  • The aluminum pump jack system is safe and easy to use; install your 20in x 24ft aluminum staging platform: to raise it, pump the system with your foot; to lower it, pull the side handle and turn the hand crank.
  • The workbench allows the installation of the 12in x 24ft upper staging and the safety net used as a guardrail system and for laying out tools.
  • The kit includes two 24ft Pro Poles which support the system and allow the user to reach heights up to 24 feet.
  • Easy installation of the ground anchor on the pole, suitable for use on mud, soil and soft surfaces.
  • The kit comes with four steel braces, allowing the user to safely attach the poles to the wall.
Product specifications

Assembled dimensions
(W X D X H)

325.5 X 51.5 X 298 in. (827 X 131 X 757 cm)

Package dimensions
(W X D X H)

295.5 X 47 X 14 in. (751 X 119.4 X 35.5 cm)

Load capacity

500 LB (227 KG) OR TWO PERSONS BETWEEN TWO POLES

Reach

24 ft (7.3 m)

Weight

428 lb (194 kg)

Material

Aluminum

Compatible with

QUAL-CRAFT®, METALTECH

Included

2X PJ-PP24 (24 ft Ultra-Jack® PRO Aluminum Pole)
2X PJ-PJAL (Aluminum Ultra-Jack®)
2X PJ-WBAL (Ultra-Jack® Workbench)
2X PJ-PAAL (Ultra-Jack® Pole Anchor)
4X PJ-BAL (Ultra-Jack® Brace)
1X PJ-SNBK (Safety Net for Pump Jack and Ultra-Jack® Systems)
1X M-SPA22024 (Two-person nestable scaffolding stage 20″ x 24′)
1X M-SPA11224 (One-person scaffolding stage 12″ x 24′)

Standards

OSHA (1926.451 & 1926.452(J)), ANSI (10.8-2019)
