Baker Scaffolds
Alu Series™ 6’ Baker
VideoAssembled dimensions
(W X D X H)
Package dimensions
(W X D X H)
Weight
85 LB (38.6 KG)Load capacity
700 LB (318 KG). Combined weight of user + materialsWorking heights
FROM 26.75 TO 73 IN. (67.9 TO 185 CM). 2 in. (5 cm) increment adjustable heightsReach
12 FT (3.7 M). Stackable up to 3 units high for 24 ft (7.4 m) reachFinish
ANODIZED ALUMINUMPlatform
ANTI-SLIP AIRCRAFT GRADE ALUMINUM ALLOY 6063Structure
1.5 IN. (3.8 CM) SQUARE TUBE. AIRCRAFT GRADE ALUMINUM ALLOY 6063Casters
5 IN. (13 CM) DOUBLE LOCKING HEAVY DUTYStandards
ANSI, CSA AND OSHA

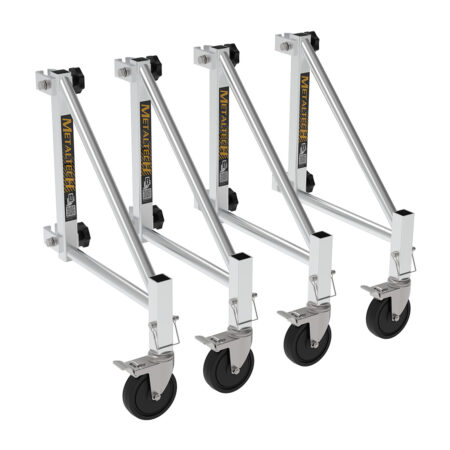

These leveling jacks are used with interior scaffolding. They are compatible with:
- I-CISC
- I-BMSS
- I-CAISC
- I-CISCTP
- I-CISCAS
- I-CISCH1
- I-CISCDW
For the 6' Baker (I-CISC, I-BMSS, I-CAISC) & 6' (I-IRC, I-BM6S) scaffoldings, yes you have to use the rungs of the frame. If the scaffolding has a platform with trapdoor, you have to climb from the inside of the scaffold. If the platform does not have a trapdoor, climb from the outside of the scaffold while respecting the “Maximum climbing distance” table in the assembly instruction. You can find the assembly instruction on our website under the product’s heading.
For the 6' (I-CAIRC), 5' (I-IMIS) and 4' (I-IMCN, I-BM4S, I-IMAC) scaffoldings, no you cannot use the rungs to climb up or down the structure. You have to use the platforms.
Yes, it is possible to stack three units one on top of the other.
- When stacking 2 units, a guardrail (I-CAISCGR) and the 14" outriggers (I-CAISO4) must be installed.
- When stacking 3 units, a guardrail (I-CAISCGR) and the 46" outriggers (I-BMSO4TT) must be installed.
CSA
OSHA
ANSI
