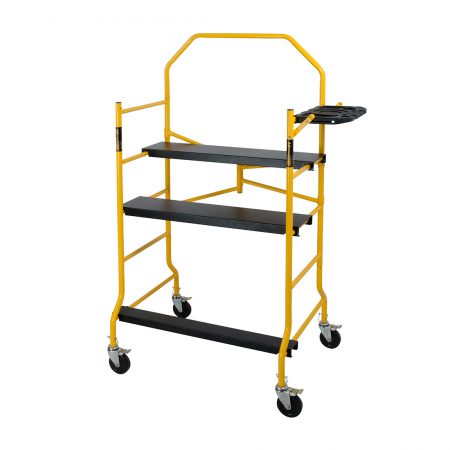

Portable Scaffolding
Jobsite Series™ 5’
VideoAssembled dimensions with tool shelf opened
(W X D X H)
Package dimensions
(W X D X H)
Weight
77 LB (35 KG)Load capacity
900 LB (408 KG) Combined weight of user + materials. 450 lb (204 kg) per platformWorking heights
11.5 - 25 - 36.5 - 48 IN. (29 - 64 - 93 - 122 CM)Reach
10 FT (3 M)Finish
POWDER COATEDPlatform
2 ANTI-SLIP AND 1 STEP BAR. 14 GAUGE STEELStructure
1.25 IN. (3.2 CM) OUTSIDE DIAMETER. 16 GAUGE STEELCasters
5 IN. (13 CM) DOUBLE LOCKING HEAVY DUTYStandards
ANSI, CSA AND OSHA
For the 6' Baker (I-CISC, I-BMSS, I-CAISC) & 6' (I-IRC, I-BM6S) scaffoldings, yes you have to use the rungs of the frame. If the scaffolding has a platform with trapdoor, you have to climb from the inside of the scaffold. If the platform does not have a trapdoor, climb from the outside of the scaffold while respecting the “Maximum climbing distance” table in the assembly instruction. You can find the assembly instruction on our website under the product’s heading.
For the 6' (I-CAIRC), 5' (I-IMIS) and 4' (I-IMCN, I-BM4S, I-IMAC) scaffoldings, no you cannot use the rungs to climb up or down the structure. You have to use the platforms.
The Jobsite Series 6' (I-IRC) is stackable. It can be stacked 2 units high, one on top of the other. When stacking two units, guardrail (I-IRGR) and outriggers (I-IRO4) must be installed.
The Jobsite Series 5' (I-IMIS) & 4' (I-IMCN) are not stackable. Use only one unit high.
Yes, the Alu Series, made of aluminum, is lighter than the Jobsite Series which is made of steel.
CSA
OSHA
ANSI
