14″ Outriggers for Jobsite Series 6′ Bakers

Model: I-CISO4 UPC: 778300613151
Model: I-CISO4FD UPC: 778300009435
Model: I-CISO4FDNCAS UPC: 778300008407

Product description

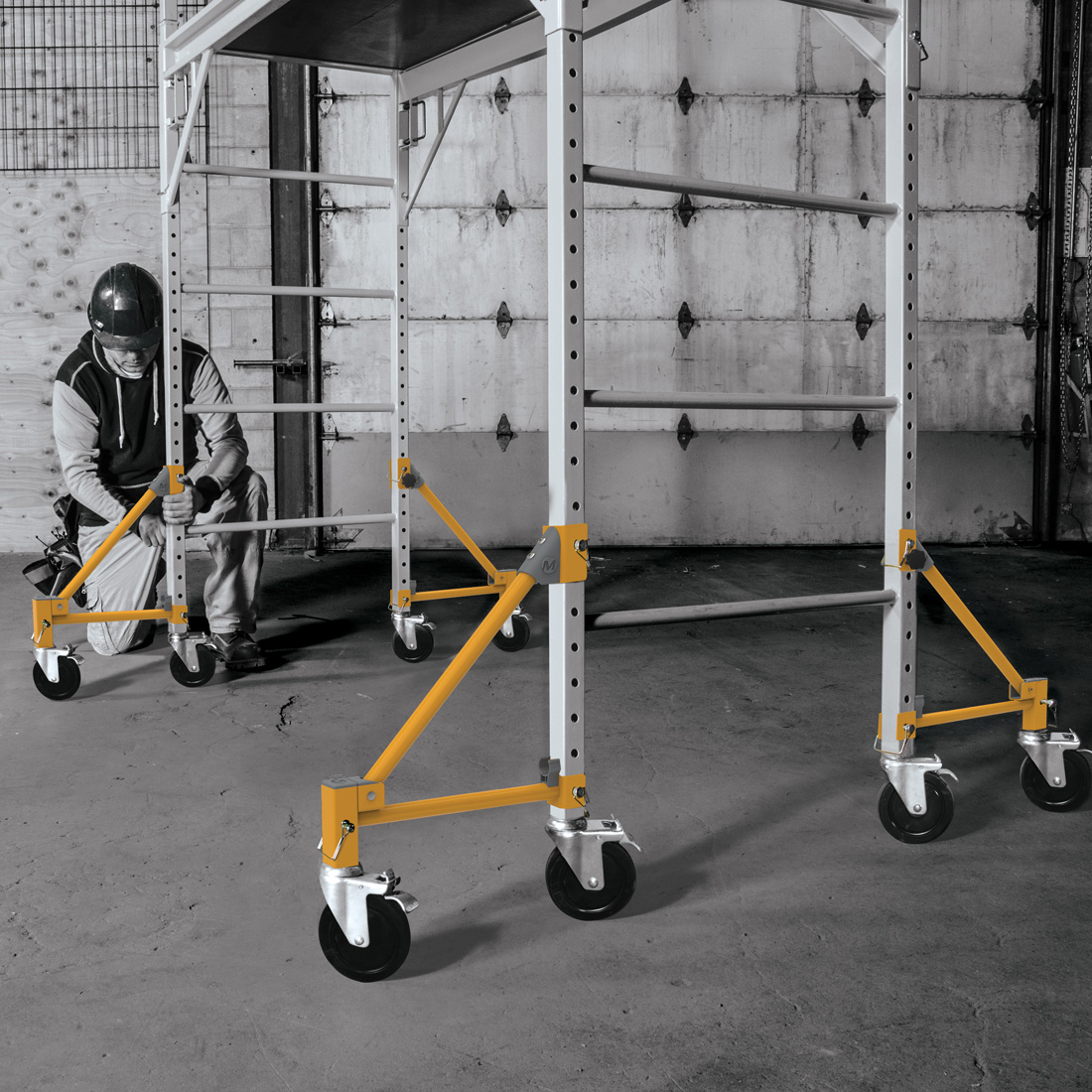

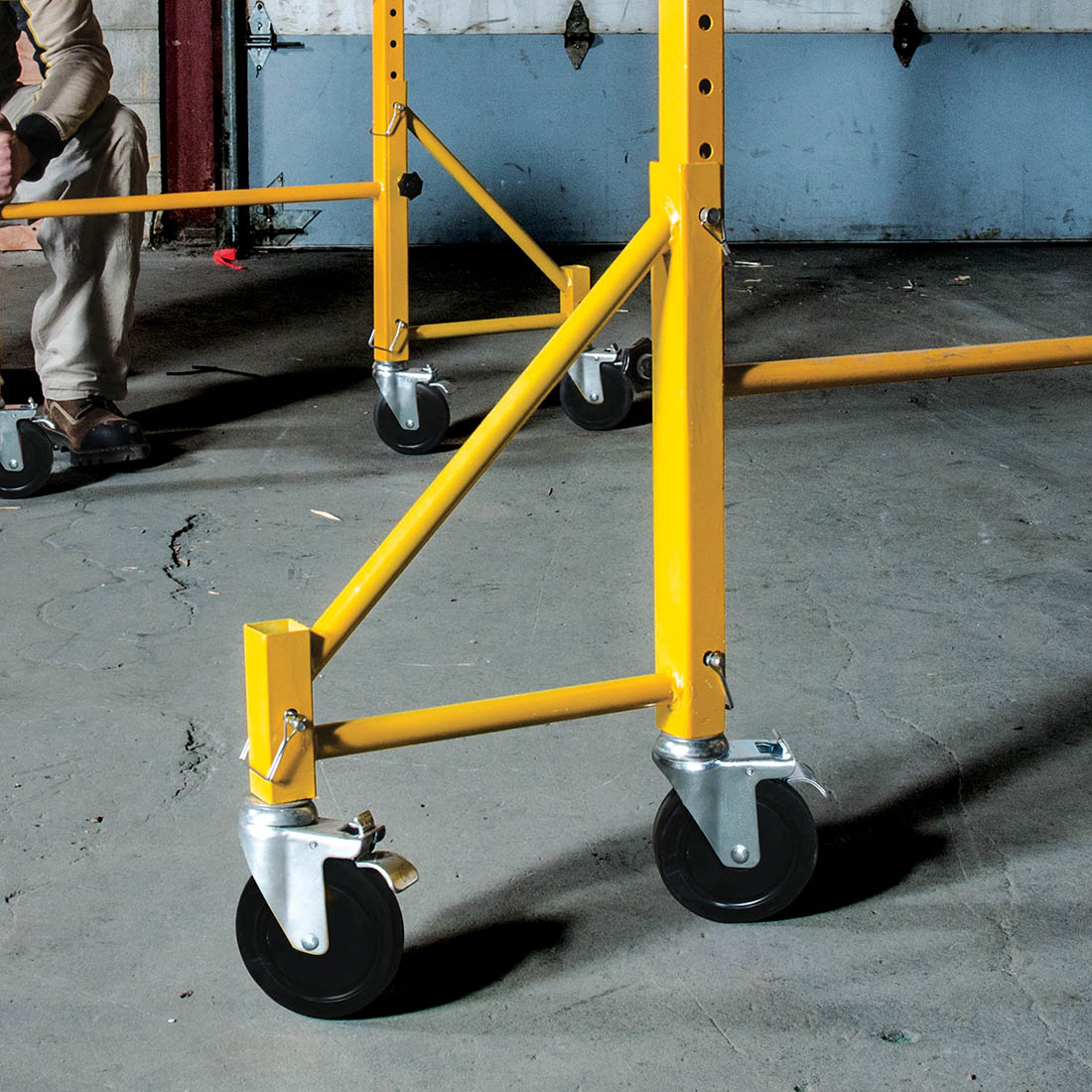

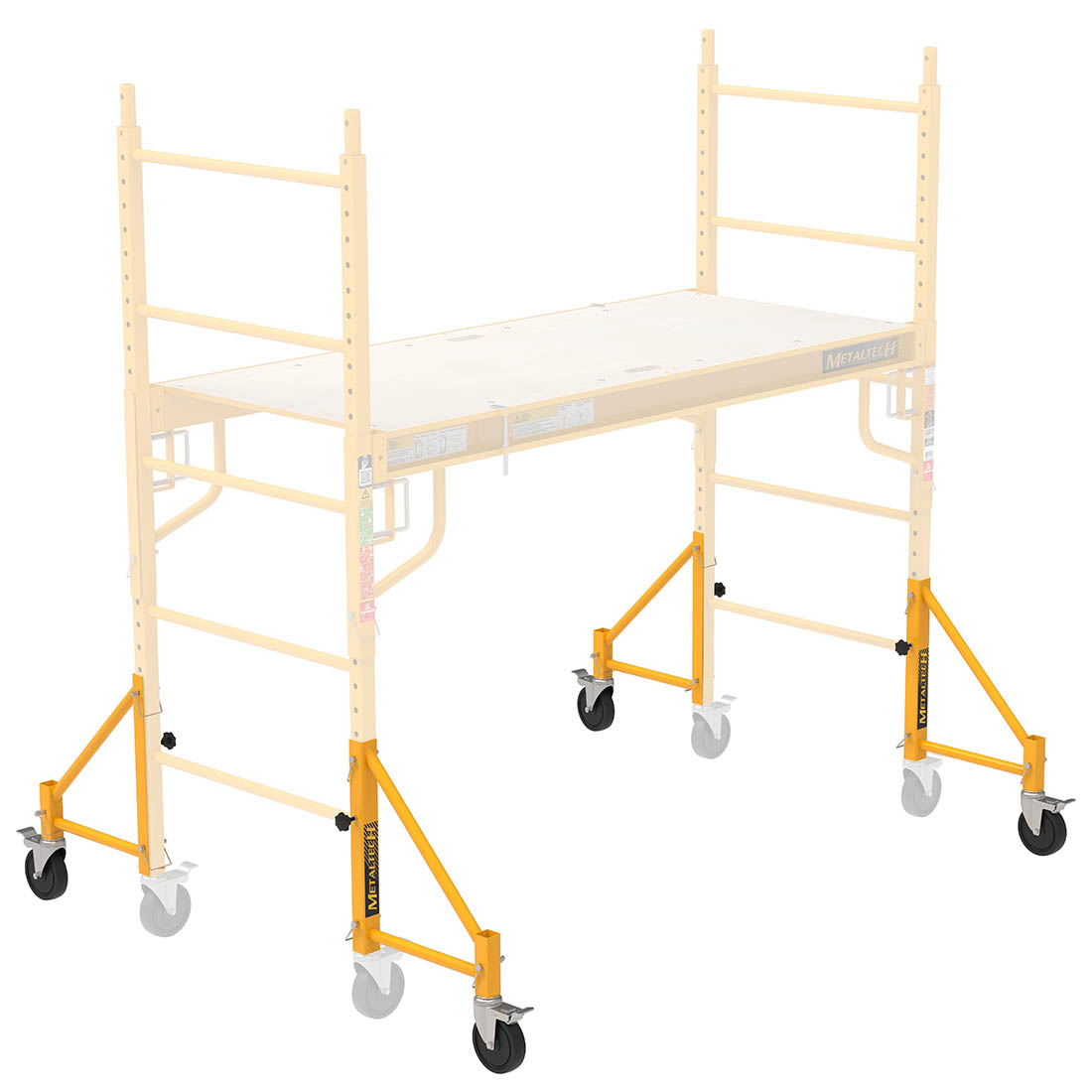

The Metaltech 14" Outriggers come in a set of four. These steel outriggers are essential for safely stacking two 6 ft baker scaffold sections, allowing you to reach up to 18 ft high. Always use a guardrail system (I-CISGRJP) when staging interior scaffolding.
  • Madatory safety component when stacking scaffolding
  • 14" outriggers are mandatory for scaffolding two sections tall
  • Stabilizers provide extra support to the entire structure
  • Compliant with ANSI, CSA, and OSHA standards
Product specifications

Assembled dimensions
(W X D X H)

16 x 3.75 x 23.5 in. (40.6 x 9.5 x 59.25 CM)

Package dimensions
(W X D X H)

22.75 x 16 x 5 in. (57.8 x 40.6 x 12.7 CM)

Weight

31.4 lb (14.25 kg)

Included in the box

4 OUTRIGGERS, 4 CASTERS, 12 LOCKING PINS and assembly instructions.

Compatible with

Jobsite Series™ 6′ Baker (I-CISC)
Jobsite Series™ 6’ Baker trapdoor (I-CISCTP)
Jobsite Series™ Safeclimb™ (I-CISCH1)
ScaffoldBench™ 6′ Baker System 4-in-1 (I-CISCMT)
Alu Series™ 6’ Baker (I-CAISC)

Standards

ANSI, CSA AND OSHA

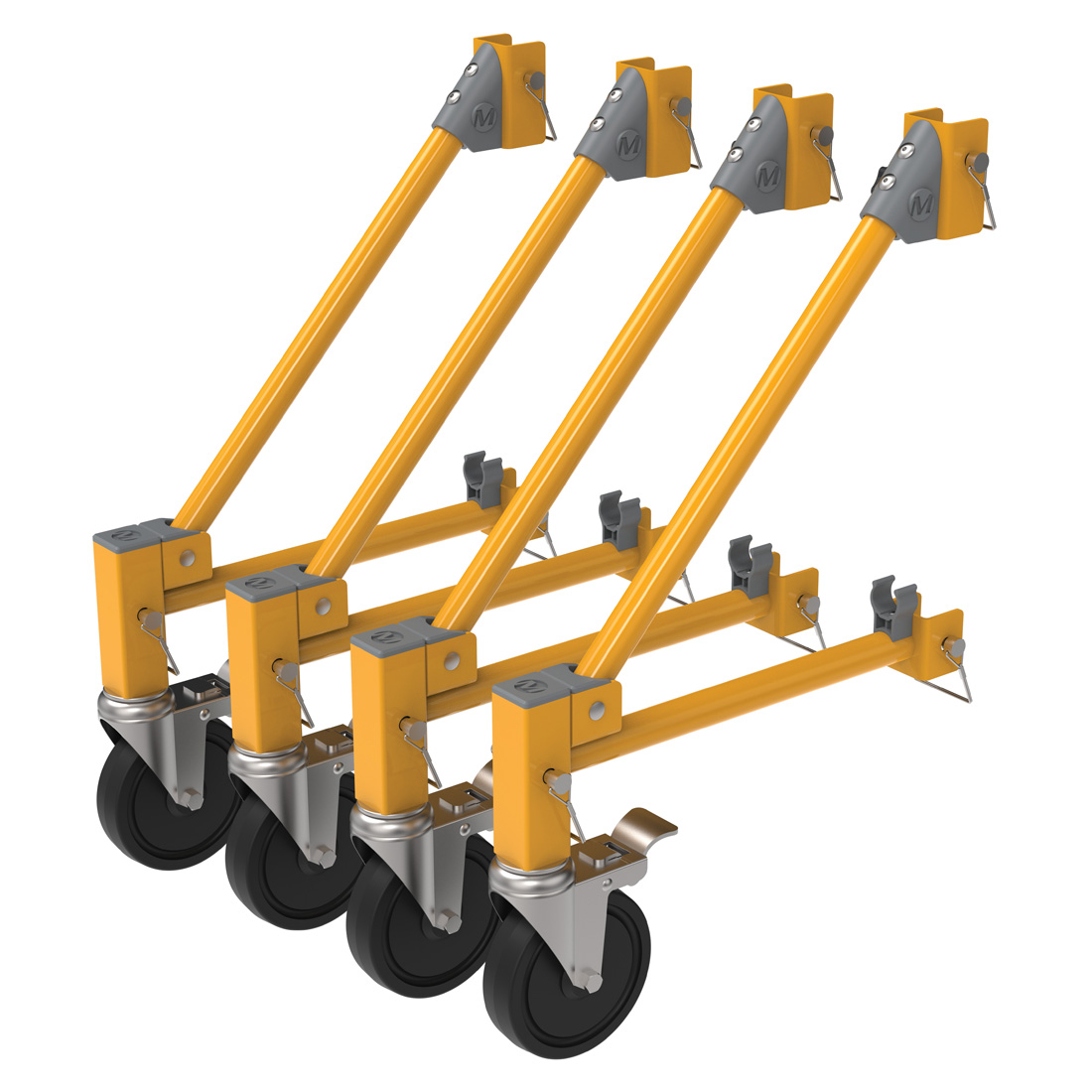

Model

I-CISO4FD

Assembled dimensions
(W X D X H)

15.5 x 8.25 x 23.75 in. (39.4 x 21 x 60.3 cm)

Weight

24.6 lb (11.2 kg)

Included in the box

4 outriggers, 4 casters, 12 locking pins and assembly instructions.

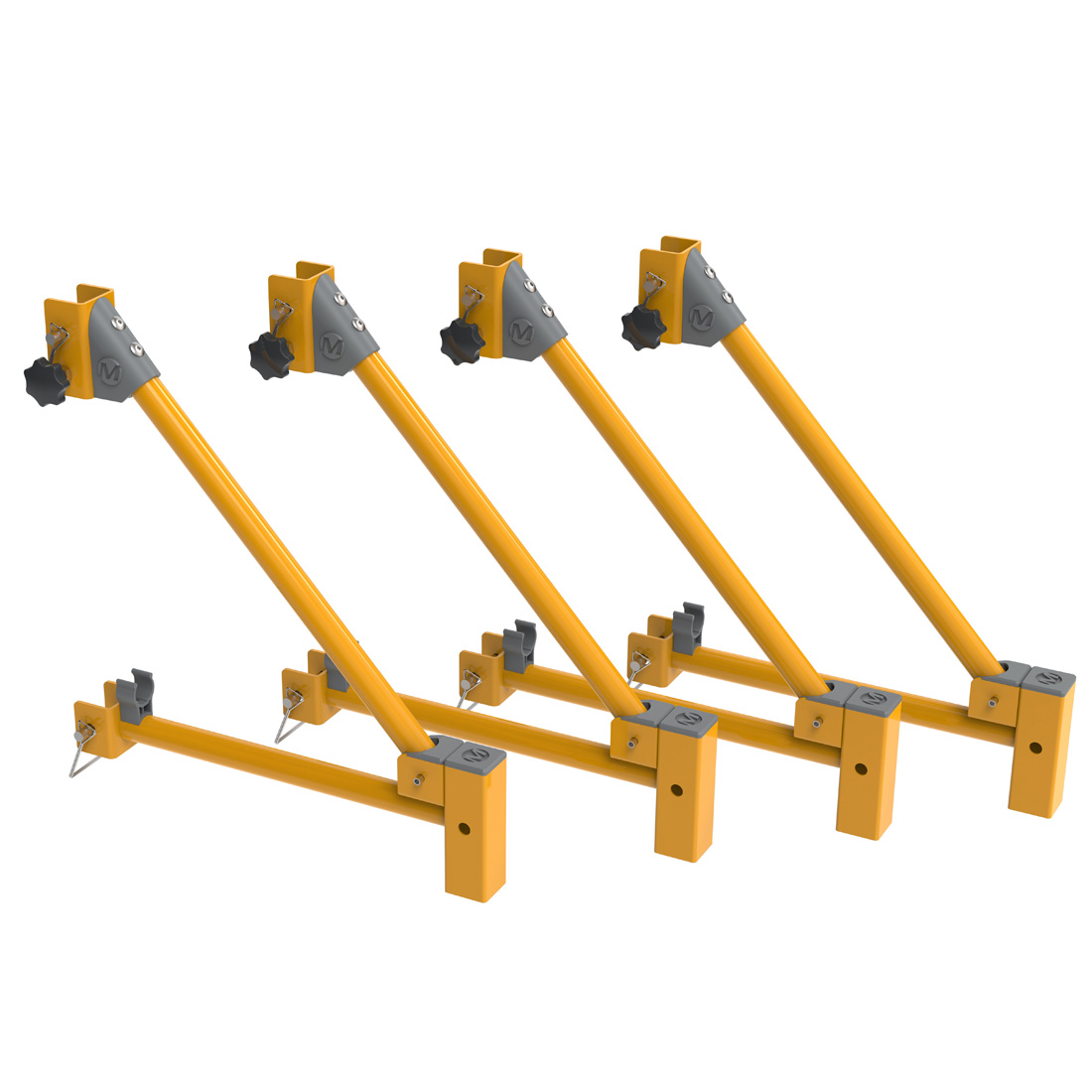

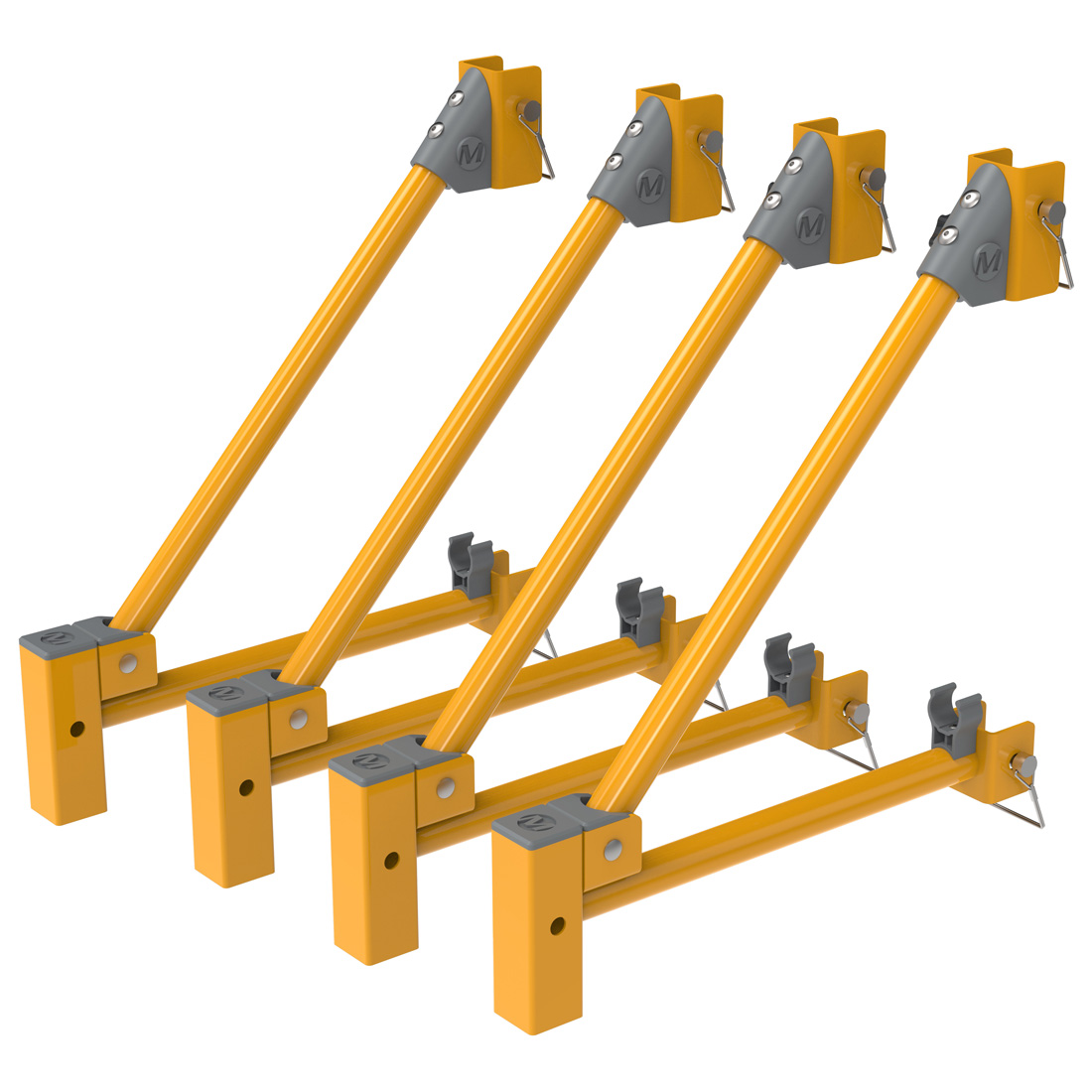

Model

I-CISO4FDNCAS

Assembled dimensions
(W X D X H)

15.5 x 8.25 x 17.5 in. (39.4 x 21 x 44.5 cm)

Weight

12.8 lb (5.8 kg)

Included in the box

4 outriggers, 8 locking pins and assembly instructions.
Product links

Instructions manual

Replacement parts
FAQ

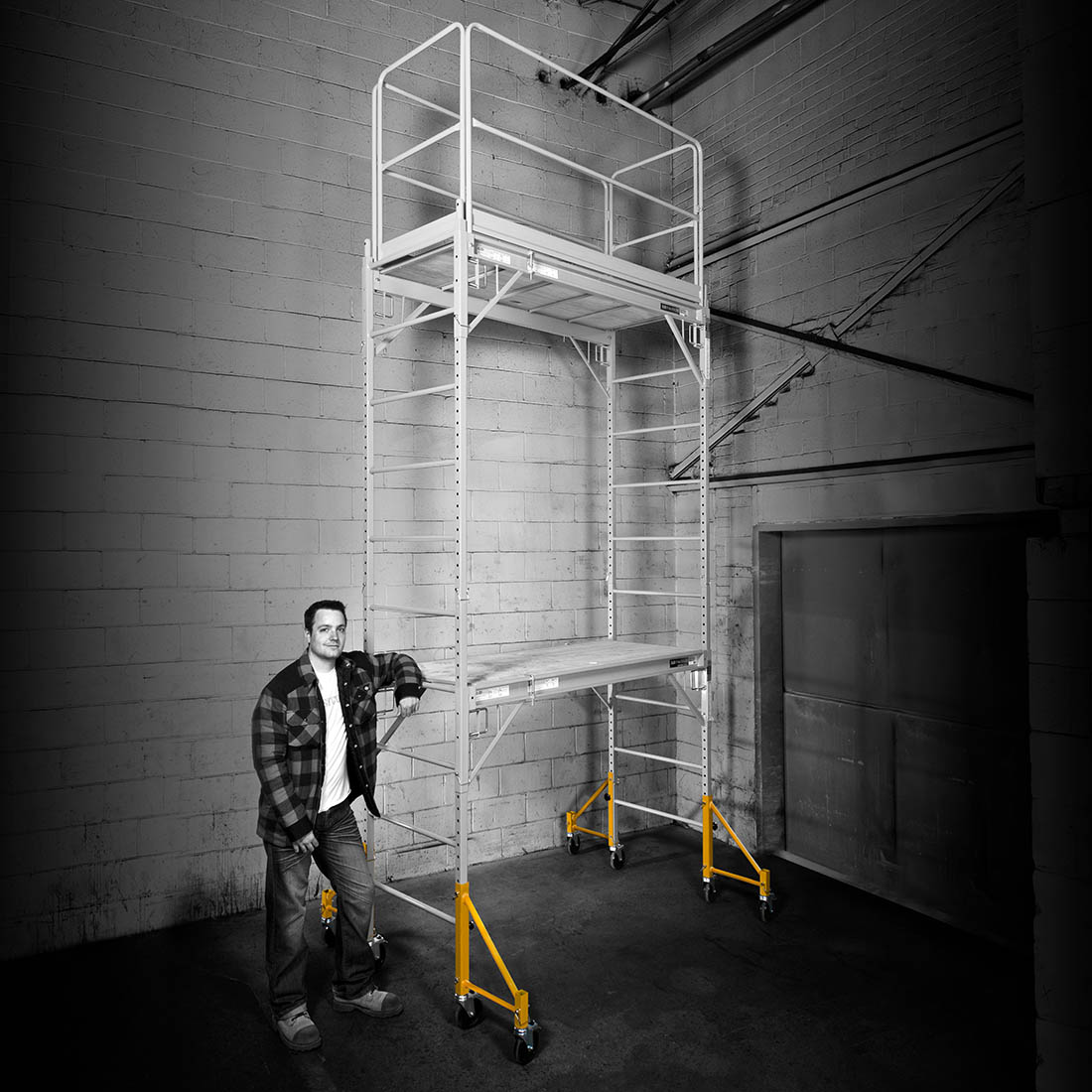

Can we stack Jobsite Series 6′ Baker (I-CISC)?

Yes, it is possible to stack up to three units one on top of the other.

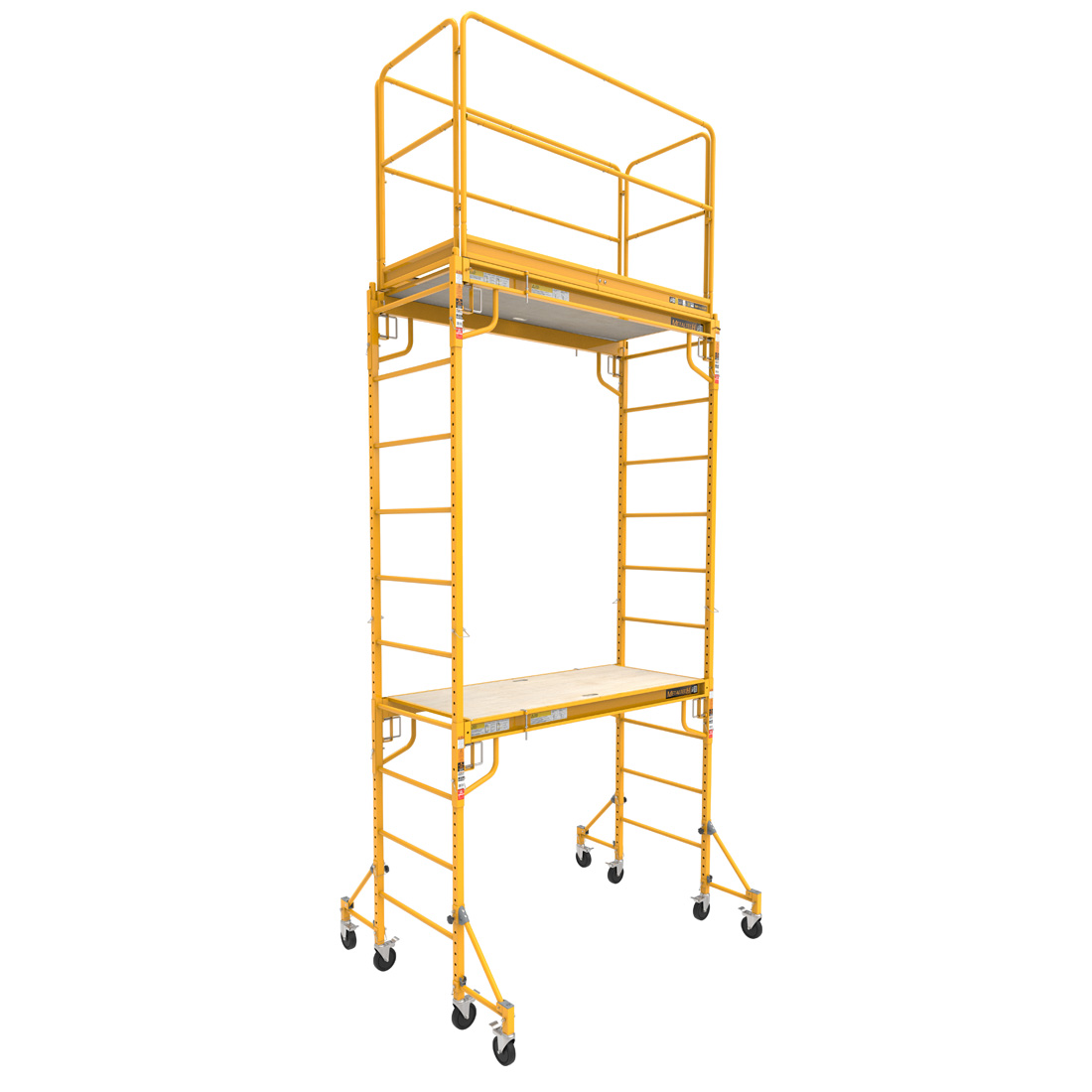

  • When stacking 2 units, a guardrail (I-CISGRJP) and the 14″ outriggers (I-CISO4) must be installed.
  • When stacking 3 units, a guardrail (I-CISGRJP) and the 46″ outriggers (I-BMSO4TT) must be installed.

What is the difference between the 14″ outriggers (I-CISO4) and the 14″ outriggers Perry style (I-CISO4PY)?

These two models of outrigger have different casters. The casters of the outriggers (I-CISO4) have a square stem, while the casters of the Perry style outriggers (I-CISO4PY) have a round stem. These casters are not interchangeable between the two different models of outrigger.
